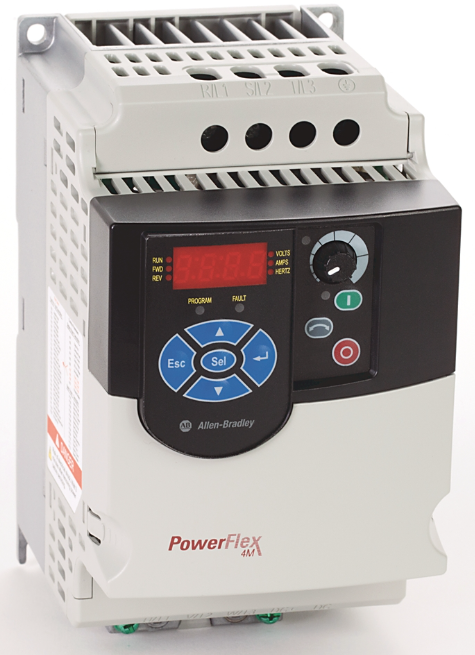

Allen-Bradley PowerFlex 4M 1.5kW AC Drive – 22F-A8P0N113

Allen-Bradley PowerFlex 4M 1.5kW AC Drive – 22F-A8P0N113

Allen-Bradley PowerFlex 4M adjustable frequency AC drive suitable for Angelo Po ovens.
Designed for compact motor control applications, the PowerFlex 4M provides a 1.5kW (2 HP) output, integrated keypad and LED display, built-in EMC filtering and RS485 communications in a compact IP20 enclosure.

Manufacturer Part Number: 22F-A8P0N113
Standard Warranty Duration: 1 year
Unit of Measure: 1 unit
Suitable for: Angelo Po Ovens
Retail 6 SKU: R6.0002

• Manufacturer: Allen-Bradley / Rockwell Automation
• Product Series: PowerFlex 4M
• Drive Type: Adjustable Frequency AC Drive
• Motor Rating: 1.5 kW / 2 HP
• Input Voltage: 240VAC
• Input Phase: Single Phase
• Output Current: 8.0 A
• Frame Size: B
• Enclosure: IP20 Open / Panel Mount
• User Interface: Fixed digital keypad with potentiometer and LED display
• Power Factor: 0.98
• Built-in EMC Filter: Yes – internal CE-compliant filter
• Communications: Integral RS485 / DSI, supporting Modbus RTU
• Control Mode: V/Hz
• Dynamic Braking Transistor: No
• Operating Temperature: -10°C to 50°C
• Mounting: DIN-35 rail mount
• Standards Compliance: EN 50178, EN 61800-3 and UL 508C
