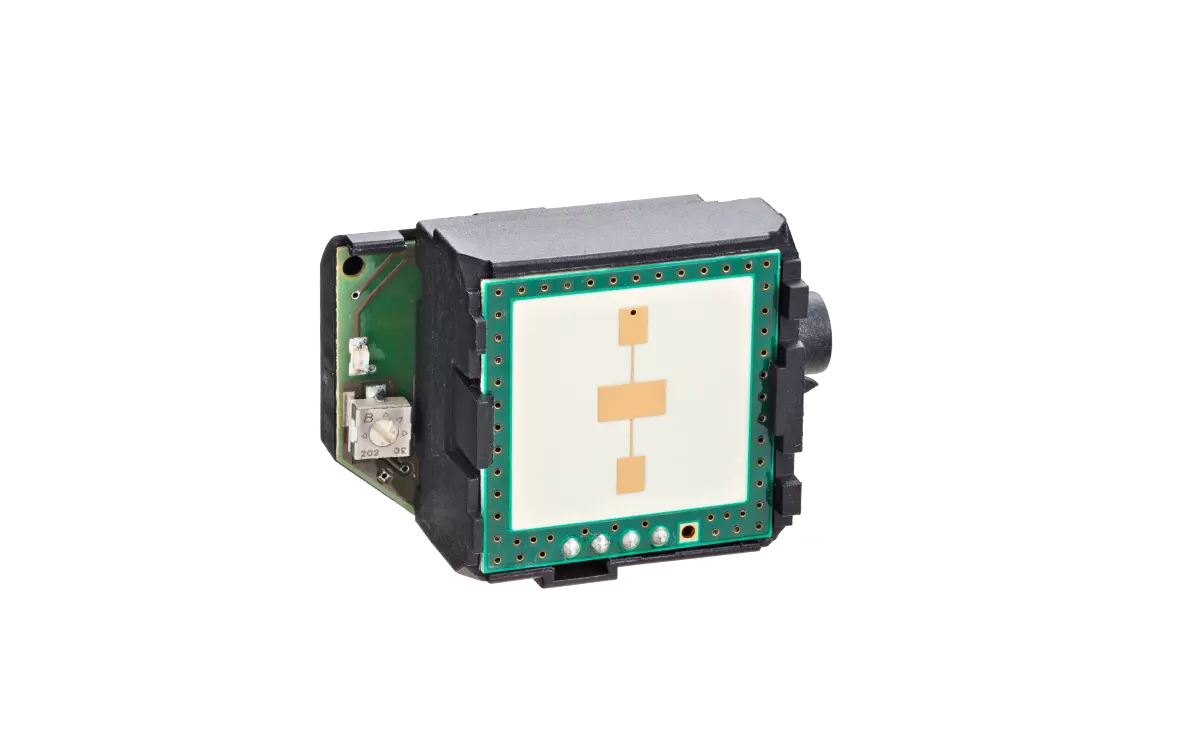

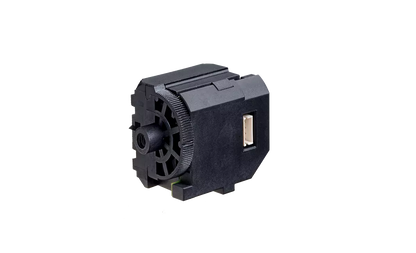

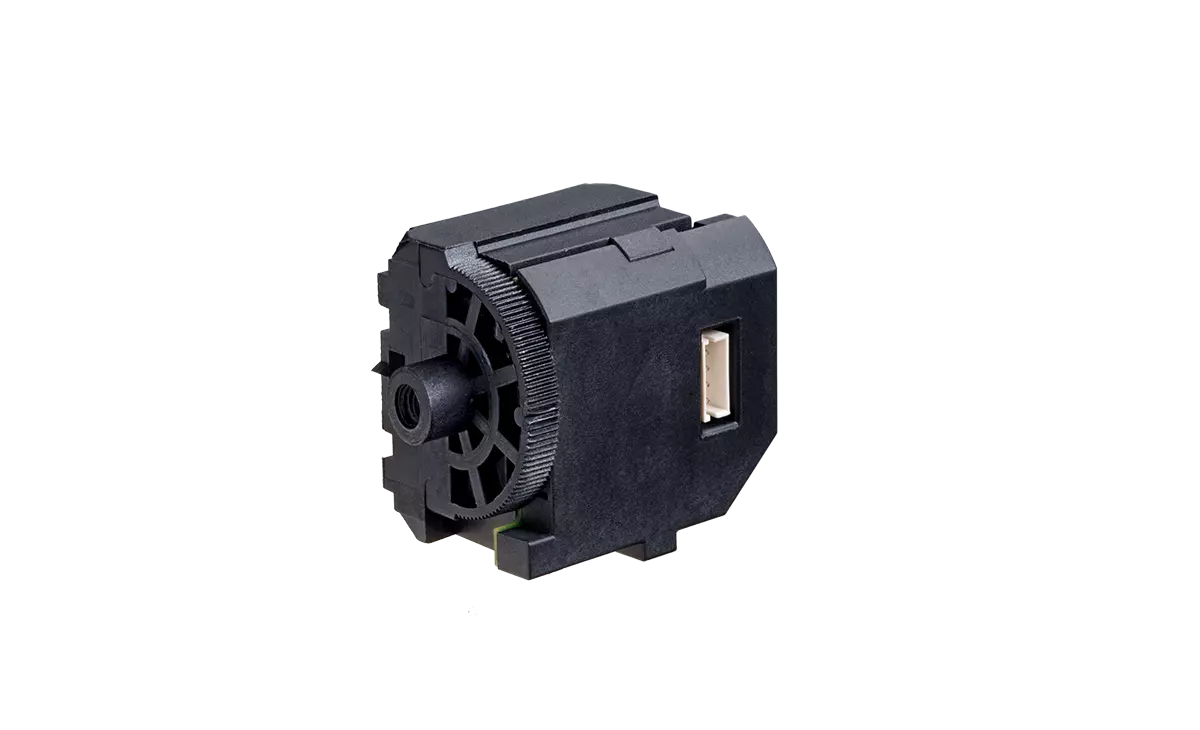

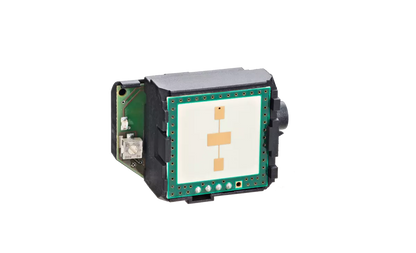

Compact Gate Radar Sensor with 1 Meter Cable – CGS-1 2G

Compact Gate Radar Sensor with 1 Meter Cable – CGS-1 2G

Compact gate radar sensor, suitable for use with ITAB Smart Gate systems.
The BEA CGS-1 2G is a high-precision, unidirectional microwave motion sensor engineered specifically for the seamless activation of customer guidance systems in retail and supermarket environments.

With its compact design and flush-mount capability, it integrates invisibly into automated gates, mechanical turnstiles, and barriers to optimize foot traffic flow.

Manufacturer Part Number: CGS-1 2G
Client Reference Code: 29146-01
Standard Warranty Duration: 1 year
Unit of Measure: 1 unit
Suitable for: ITAB Smart Gate
Retail 6 SKU: R6.0009

Details:
• Manufacturer: BEA
• Dimensions: 40 × 30 × 25mm
• Technology: Microwave doppler radar
• Transmitter frequency: 24.150 GHz
• Transmitter radiated power: < 20 dBm EIRP
• Transmitter power density: < 5 mW/cm²
• Detection mode: Motion
• Min. detection speed: 5 cm/s (measured in sensor axis)
• Supply voltage: 12 V to 24 V DC +30% / -10%
• Max power consumption: < 2 W
• Output: Solid-state-relay (potential and polarity free)
• Max. contact current: 250 mA
• Max. contact voltage: 50 V AC/DC
• Mounting height: From 0.8 m to 1.2 m
• Temperature range: From -20 °C to + 55 °C
• Dimensions: 40 mm (L) x 29 mm (H) x 21 mm (W)
• Material: ABS & POM
• Weight: 16g
• Cable length: 1 m
