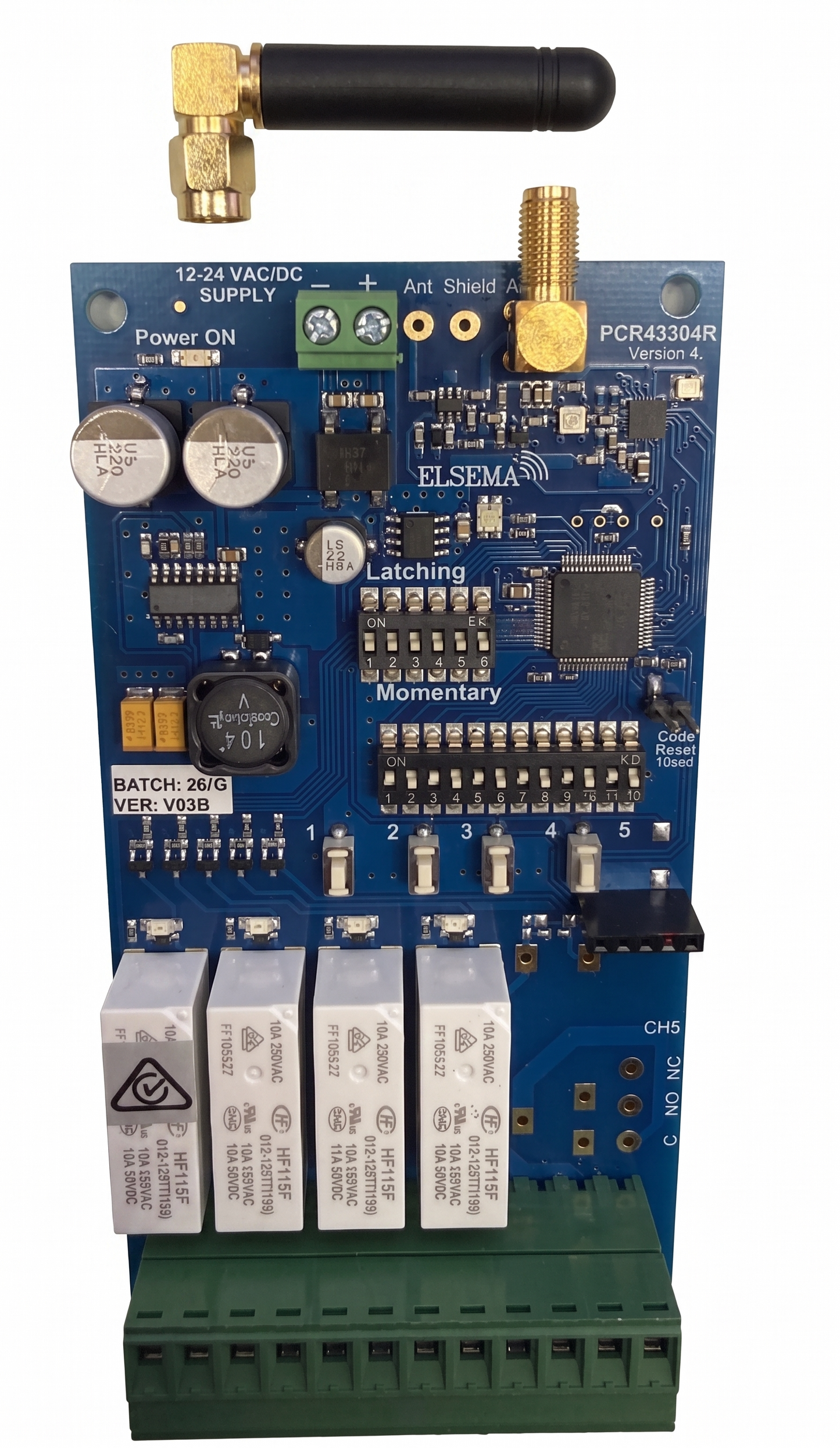

Elsema Penta 4-Channel Receiver - PCR43304R

Elsema Penta 4-Channel Receiver – PCR43304R

Elsema Penta Series 4-channel wireless receiver, suitable for use with ITAB Smart Gate systems.

The PCR43304R operates on the licence-free 433MHz band and is designed to work with both Elsema PentaCODE and PentaFOB remote controls. It provides four independent voltage-free relay outputs and supports both momentary and latching operation.

Manufacturer Part Number: PCR43304R
Client Reference Code: LR8855-03
Standard Warranty: 1 year
Unit of Measure: 1 unit
Suitable for: ITAB Smart Gate
Retail 6 SKU: R6.0004

Details:
• Manufacturer: Elsema
• Product Series: Penta
• Receiver Type: 4-channel wireless receiver
• Frequency: 433MHz licence-free band
• Technology: Frequency Hopping Spread Spectrum (FHSS)
• Supply Voltage: 12–24V AC/DC
• Outputs: 4 independent voltage-free relay outputs
• Relay Rating: Up to 10A at 240VAC per relay
• Output Modes: Momentary and latching
• Coding: Encrypted coding or 12-way DIP switch
• Encrypted Coding Capacity: More than 17 billion code combinations
• Compatible Remotes: Elsema PentaCODE and PentaFOB series
• Remote Storage Capacity: Unlimited
• Dimensions: 130 × 70 × 27mm
• Configuration: PCB module for installation within an existing control panel or enclosure
